Description

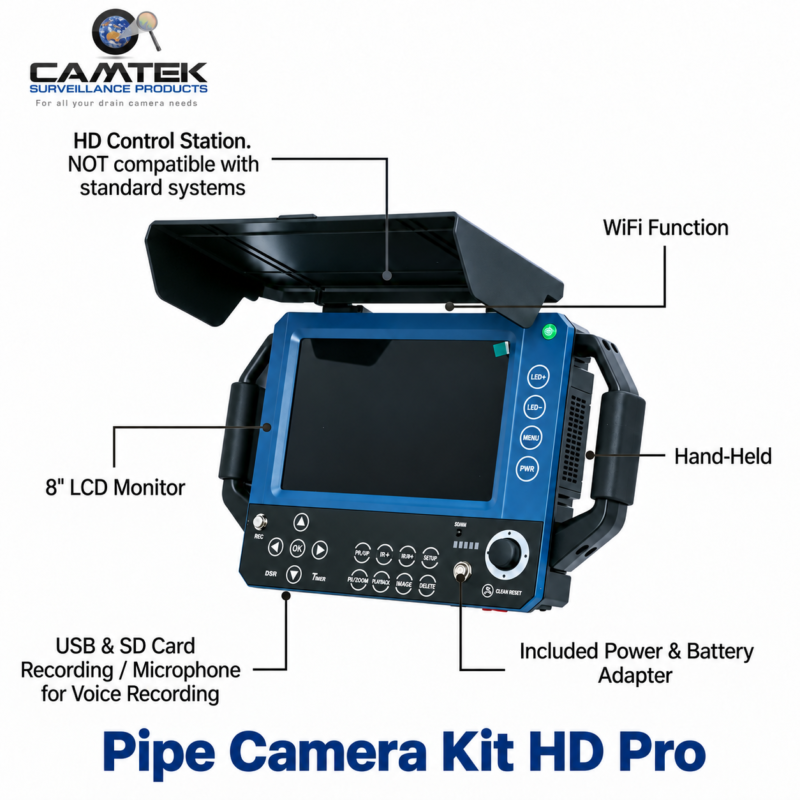

Pipe Camera Kit HD Pro – 40M
The Camtek Pipe Camera Kit HD Pro is a portable inspection system for plumbers, drain maintenance contractors and property maintenance teams. Inspect inside drains, pipes and ducting to help identify blockages, visible damage and other issues, then record your findings for customers or future reference.
With Full HD 1080p video, a bright 8-inch colour monitor and a 40m push cable, the HD Pro combines live viewing, recording and playback in one convenient unit.
Full HD Camera with Adjustable Lighting
The 2-megapixel camera captures detailed Full HD images, while its wide 123° viewing angle provides a broad view of the pipe interior. Nine adjustable white LEDs allow you to control the lighting to suit inspection conditions.
8-Inch Colour Monitor
View live footage on the bright 8-inch TFT/LCD monitor with 1280 × 800 display resolution. Review recorded videos and photos directly on the unit while you are still on site. An HDMI output also allows connection to an external display.
Video, Photo and Audio Recording
Record inspections in Full HD MP4 format, capture still images and add spoken commentary using the built-in microphone. Save your footage to USB storage or a microSD/TF card for easy transfer, sharing and record keeping. Storage capacities up to 512GB are supported.
40m Push Cable

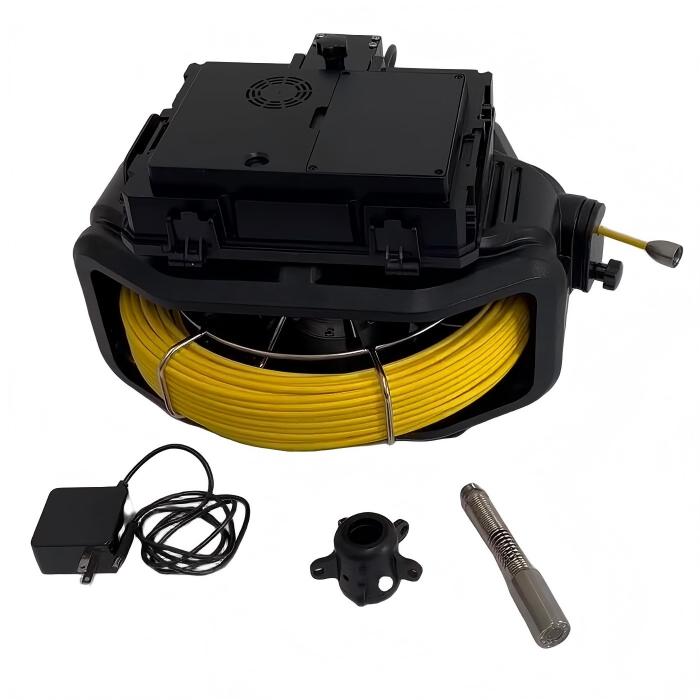

This kit comes standard with a 40m, 5.2mm fibreglass push cable for inspections requiring greater reach.
The cable is housed in a compact reel, with a convenient carry handle for transport between jobs.
Built-In Distance Counter
Track how far the camera has travelled using the built-in distance counter, with readings in metres or feet. Reset the counter at your starting point to help record the approximate position of an issue along the pipe.
Optional Camera Head with Locating Sonde – Add $350
Upgrade to a camera head with a built-in sonde for an additional $350.
A sonde is a transmitter inside the camera head that allows its position to be located underground using a compatible locator. This helps pinpoint the position of a blockage or damaged section identified during inspection.
The standard kit includes a camera head without a sonde. A compatible locator is required to use the sonde locating function and is sold separately.
View our Entry Level Inspection Camera Locator
Rechargeable Battery
The integrated 12V, 8,000 mAh rechargeable lithium battery provides approximately 5–6 hours of operation on a full charge, depending on use.
Key Specifications
- Cable length: 40m
- Push cable diameter: 5.2mm
- Push cable material: Fibreglass
- Camera resolution: 1920 × 1080 Full HD, 2 megapixels
- Viewing angle: 123°
- Camera lighting: 9 adjustable white LEDs
- Monitor: 8-inch TFT/LCD colour display
- Monitor resolution: 1280 × 800
- Recording: MP4 video, still images and microphone audio
- Storage: USB or microSD/TF card, up to 512GB
- Distance counter: Metres or feet, with reset function
- Battery: 12 V, 8,000 mAh rechargeable lithium battery
- Operating time: Approximately 5–6 hours per full charge
- External display connection: HDMI output
- Standard camera head: Without locating sonde
- Optional sonde upgrade: Add $350; compatible locator sold separately
Local Support, Repairs and Spare Parts
Supplied by Camtek Surveillance Products in Adelaide, with local product advice, workshop repairs and access to replacement parts. We work closely with our manufacturer to support your equipment and help keep it working.
Contact Camtek to discuss camera head options, locating equipment or arrange a demonstration at our Klemzig showroom.
